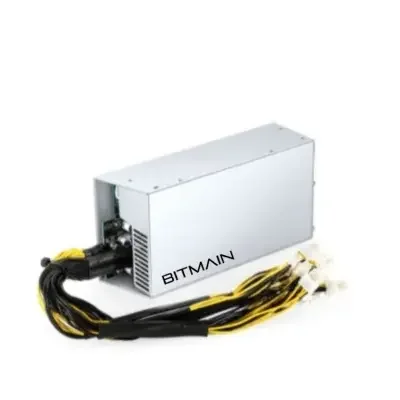

Antminer APW7 Replacement Power Supply Unit for Z15,Z15e,Z15j

The Bitmain Antminer APW7 1800W PSU is designed for the (Z15,Z15e,Z15j), delivering a stable 12v-16v output with a 220v input. Built for efficiency, it ensures reliable power and optimal mining performance.

Specifications

Out 1:

• Dc Voltage: 12.0V
• Rated Current(220 V input): 150A
• Rated Power(220 V input): 1800W
• Rated Current(110 V input): 83.3A
• Rated Power(110 V input): 1000W
• Ripple & Noise: <1%
• Voltage Accuracy : 12.0v—12.5v
• Line Regulation: <1%
• Load Regulation : <1%
• Setup Time : <2S
• Short Circuit Protection:  >10mS

Protection:

• Input Undervoltage protection value: 80-89v AC
• Output Short Circuit: Yes
• Overheat Protection:  Yes
• Over-current Output:  150-200A

Input:

• Voltage Range: 100–264V AC
• Frequency Range: 47-63Hz
• Power Factor:  >0.99(full load)
• Leakage Current : <1.5mA（220V 50Hz）

Environment:

• Operating Temperature: -20-60℃
• Operating Humidity: 0-40%
• Altitude:  < 2000m

Structure:

• Size: 206 x 110 x 62mm
• Weight Net: 2.0Kg
• Cooling method: Forced air cooling
• Noise : 43db

MinerHaolan Certified Hardware: Dispatched with factory warranty and fast tracked express courier shipping from our Hong Kong distribution center. Each unit is inspected and tested prior to export.
