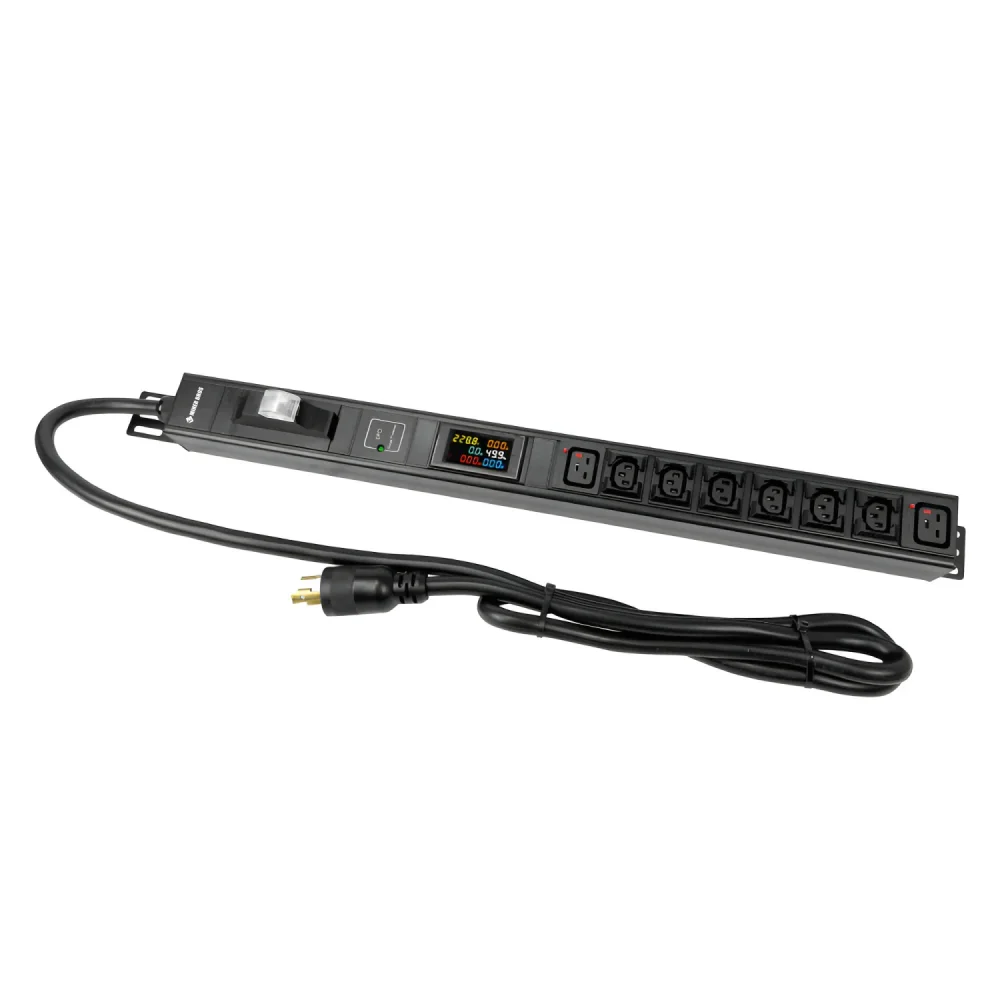

CMB8P 30A Metered Crypto Mining PDU 240V, NEMA L6-30P, 6 C13 & 2 C19 Outlets

This PDU is well-suited for applications in data centers, server rooms, and cryptocurrency mining operations, offering robust power distribution with essential monitoring features.

Electrical Specifications:

• Maximum Current: 30A
• Rated Voltage: 220-250V, 50-60Hz
• Maximum Power Output: 7200W (Recommended continuous load: 24A or 5760W)

Input Details:

• Plug Type: NEMA L6-30P
• Cord Length: 6 feet (10 AWG)

Output Details:

• Outlets: 6 x IEC 60320 C13, 2 x IEC 60320 C19
• Nominal Output Voltage: 208V-240V

Protection and Monitoring:

• Breaker: 32A single-pole breaker to prevent overloads
• Meter Display: LCD screen displaying voltage (V), wattage (W), amperage (A), frequency (Hz), energy usage (kWh), and power factor

Physical Specifications:

• Rack Height: 1U
• Dimensions: 88 cm x 11 cm x 9 cm
• Weight: 2.8 kg
• Housing: Reversible metal housing suitable for wall, workbench, rack, or under-counter mounting

Continuous Load Recommendation: For safety and longevity, it's advisable to adhere to the 80% rule for continuous loads, limiting usage to 24A (approximately 5760W) to prevent overheating and ensure reliable operation.

Mounting Flexibility: The 1U reversible metal housing allows for versatile installation options, including wall, workbench, rack, or under-counter mounting, accommodating various setup requirements.

LCD Monitoring: The integrated LCD display provides real-time monitoring of essential electrical parameters, aiding in efficient power management and troubleshooting.
