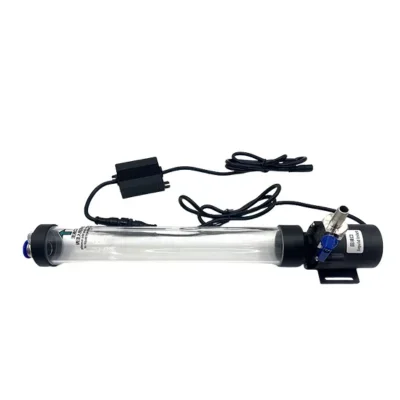

MB Water Pump Lianli Radiator 12KW

The brushless DC water pump (24VDC) is a high-performance replacement designed for LianLi 12KW ASIC miner water cooling systems. Delivering 80W rated power, A16meter head, and a maximum flow rate of 2400L/H, it provides powerful, stable, and efficient coolant circulation for continuous mining operations. Its advanced three phase brushless motor with magnetic isolation drive ensures low noise, high reliability, and extended service life.

Built from high quality, environmentally friendly materials, the pump withstands temperatures up to 100°C, maintaining consistent performance under heavy workloads. Energy efficient and corrosion resistant, the  pump is ideal for hydro cooled ASIC miners and industrial water cooling applications requiring durability and precision.

This compact and highly efficient pump is designed for long life and ultra low noise performance. It features a ceramic shaft and carbon fiber graphite bushing that provide exceptional wear resistance. The brushless electronic commutation design eliminates carbon brush friction, ensuring smooth, maintenance-free, and continuous long term operation. With a three-phase brushless DC motor and soft-start technology, the unit is built from high-temperature resistant materials, allowing stable operation even when fully immersed in boiling water up to 100°C. Its water electricity separation structure with epoxy resin sealing ensures complete waterproofing and safe, low voltage DC operation with no risk of leakage.

Specifications:

• Supported working voltage range: 12VDC-26VDC (maximum should not exceed 26VDC)
• Size: 102 x 78 x 80mm
• Drive mode: three phase brushless DC design, magnetic isolation drive (brushless)
• Applicable liquid media: fresh water, seawater, oil, alcohol, weak acid, and alkaline liquids;
  liquids containing impurities need to be filtered to avoid wear and blockage of the pump body cavity
• Load current and power: approximately 3.3A@24VDC, 80W@24VDC
• Pump body material: PES/SPS/PPS/PA66+30%GF
• Water inlet and outlet diameter: G1/2, quarter male thread, outer diameter is about 20 mm
• Maximum horizontal flow: approximately 2300L/H @24VDC
• Maximum static head: 16 meters @24VDC
• Noise : <35dB
• Operating temperature range: -20℃ – 100℃
• Waterproof level: IP68, completely waterproof, supports full submersible work
• Smart protection features: water shortage alert, stuck prevention, rotor blocking protection, and idle mode protection.
• Water pump speed control: This model operates at a fixed power level and does not support adjustable pump speed.
