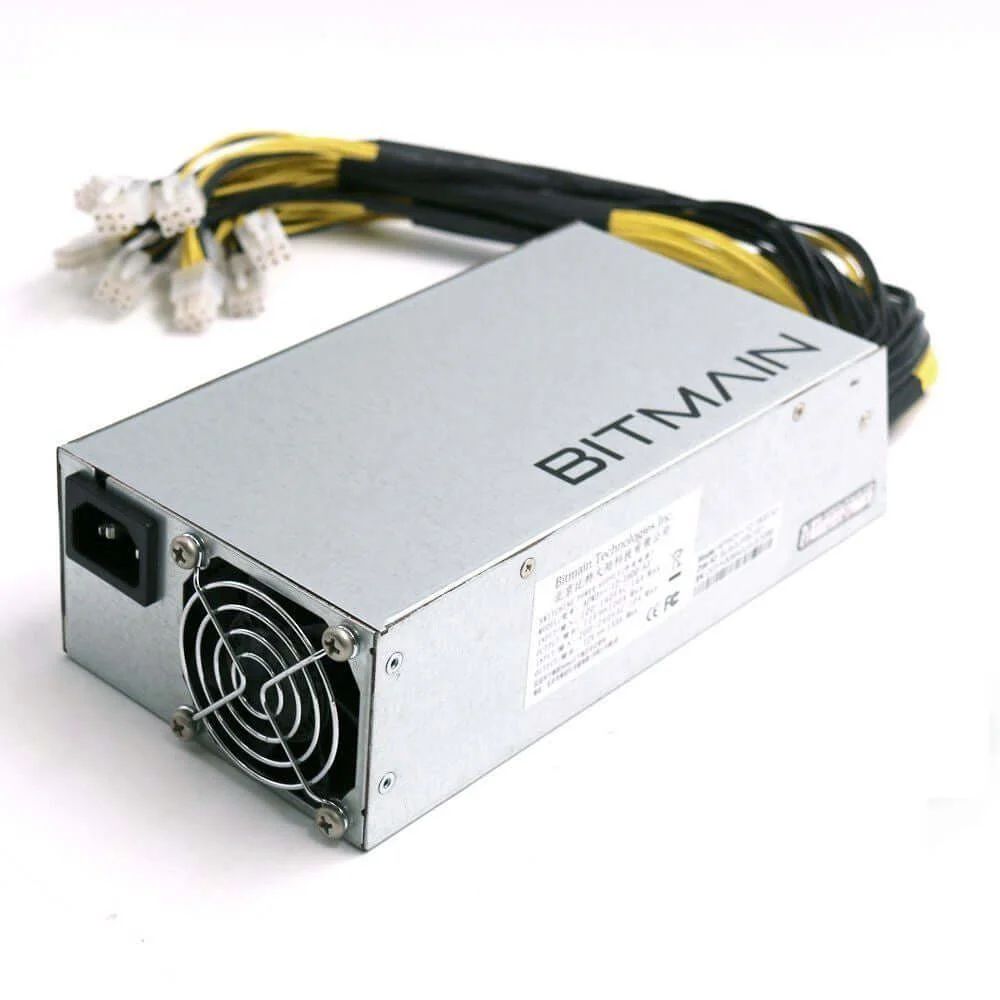

Bitmain APW3++ 1200-1600W 220-240V Power Supply

• Link to Europe power adapter (supports 220V)

*This PSU will not work if you have standard 110-120V power source. It only works on high voltage power source between 220-240V.

**USED CONDITION - May show signs of wear/tear.

1-2 Weeks Shipping Time

BITMAIN AntMiner APW3++ -12-1600 PSU Series

The APW3++ -12-1600 Series AC-DC PSU is specifically designed with mining operations in mind, and combines high conversion efficiency and a strong dynamic performance into a power dense package. It also features short circuit, overload, overheat, low voltage and overload protections.

1. This PSU includes  several features which make it optimal for cryptocurrency mining operations, including:

1) The air flow direction runs from the AC input to the DC output, which is the same configuration as most miners. This proves beneficial for those with large-scale mining operations where heat management is a major consideration.

2) The PCB uses a conformal coating to prevent damage from high voltage spark discharges on MOS pins, or near high-pressure solder joints when external conductive particles or dust enter the PSU.

3) The APW3++ -12-1600 can work stably in environments with a 60°C ambient temperature. If temperatures exceed 60°C, the PSU should be underclocked (refer to Max Load vs. Ambient Temperature Graph in the user guide for details). Considering the high temperature in mining operations, all internal components are selected with a standard of 105°C, so the APW3++ -12-1600 has a much longer lifespan than a general use PSU under similar high temperatures.

4) The APW3++ -12-1600-B2 uses a PCI-E connector which is compatible with currently available ATX PSUs, as well as most bitcoin mining machines.

The high power efficiency translates to big cost savings -- if one uses a secondhand general use PSU running at 83% efficiency, when compared to the APW3++ -12-1600 running at 93.5% efficiency, assuming an electricity cost of $0.10 per kWh, a user could save more than $150 USD per year in power fees.

Note:

1. The PSU cannotbe used in countries with a mains power voltage lower than 205V. The PSU will not start below this voltage. And power cord is not included, please find one with at least 16A from your local market..
2. Be sure to keep the original box at hand when you get PSU, the original box should be used to return the PSU when you requesting RMA. Otherwise, it won't be honored.
3. If you need the PSU to replace the one in S4/S4+, please kindly mark "need the switch board to use in S4/S4+" in comment field when placing order, we'll add it when shipping out the PSU. Otherwise, it'll not be included.
4. Electronic Parameters:
